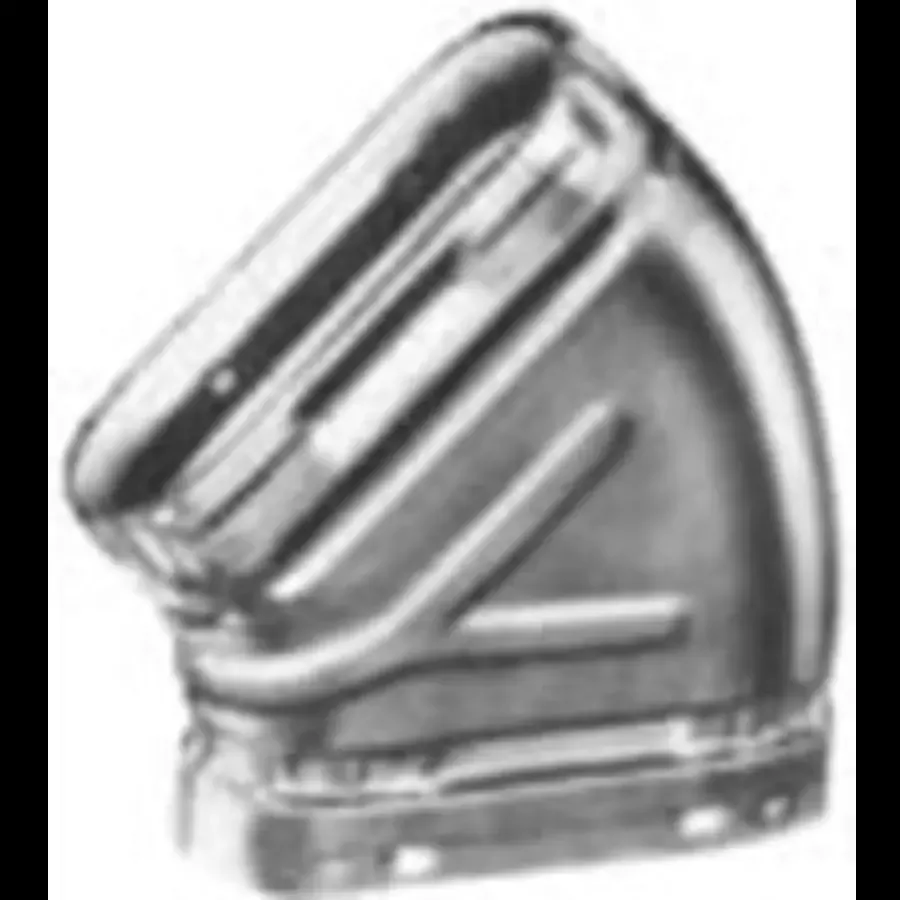

Metalbest OV 5″ Oval 45 Degree Type B Gas Vent Flat Elbow

5″ Oval 45 Degree Type B Gas Vent Flat Elbow from the OV Collection

When creating an offset in the vent pipe system, calculate the offset to determine the elbow angle. This elbow length creates a 45° bend. When used with a corresponding 45° elbow, the system will continue vertically toward the ceiling with the appropriate offset. Add pipe sections between pairs to produce additional offset. This flat elbow bends along a narrow side of the oval.

The OV series offers oval gas vent pipe and fittings and can be used for Type B, Type B 2×4, Type BW and Type B 2×6 depending on the pipe size. It features a snap together die formed ends, and is UL 441 listed. Note: Special factory supplied parts are required to use 4″ OV as Type BW vent.

Features:

Materials: Aluminum inner and Galvanized steel outer pipe
Minimum Safety Clearance to Combustibles:
1″ for diameters of 3″ to 24″
2″ for diameters 26″ to 48″
Fuels: Gas
UL Listed: UL 441
Warranty: Lifetime Limited Warranty
