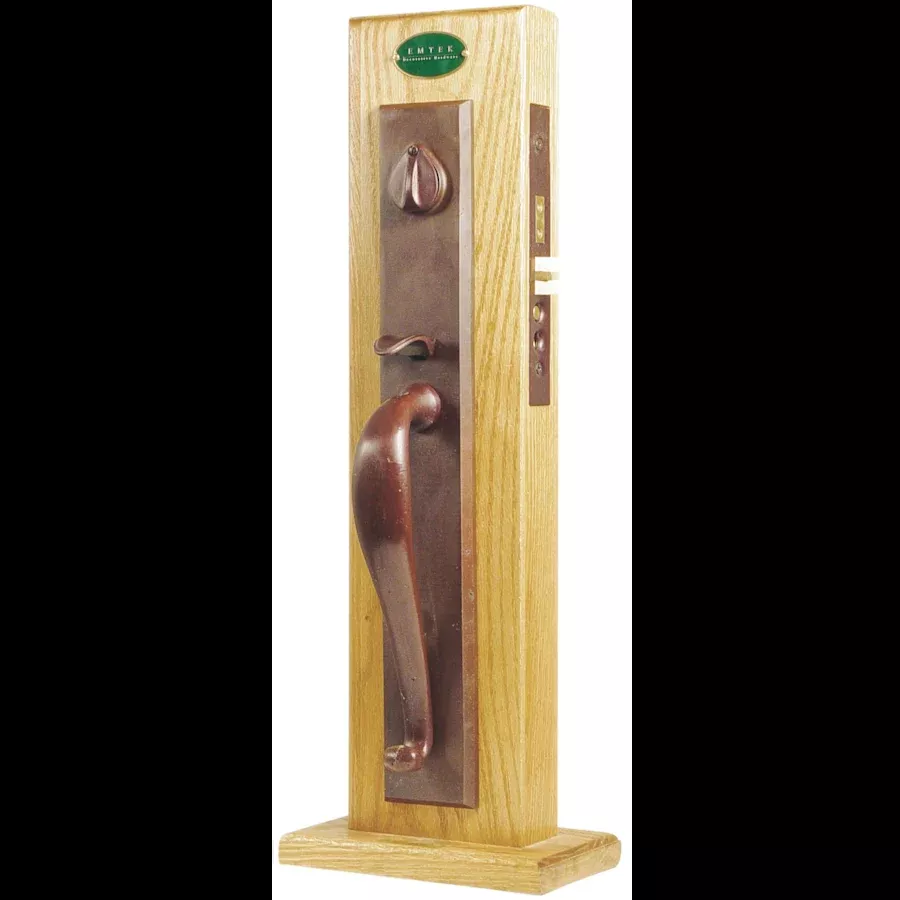

Keyed Entry (Single Cylinder) Function: This single cylinder deadbolt is keyed on the exterior with an associated thumb turn on the inside that can quickly and easily lock or unlock the latch mechanism. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Features:
Standard mortise door prep adheres to ANSI A115.1
Offers carefully applied finished by skilled artisans designed to last for years to come
Manufactured with precision and care by the experts at Emtek
Includes a standard Schlage C Keyway
Please select handing at time of purchase to ensure the product suits your needs
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Product Technologies:
Emergency Egress Function (F13 Option): Simply turning the interior knob or lever frees both the latch and deadbolt, allowing a quick and easy exit. Locks without this function may require you to unlock both deadbolt and latch as separate actions. In order to customize your mortise lock with the emergency egress function you must choose the F13 (Emergency Egress Function) UL Function option above.
Lock Out Button (F20 Option): Enables the user to lock the outside handle, this way the latch cannot be operated from the outside at any time except with the key. In order to customize your mortise lock with the lock out button function you must choose the F20 (Lock Out Button) UL Function option above.
UL Listed: This product has been rigorously tested to ensure that the design and craftsmanship meets the high safety standards of both Canada and the United States. This mortise lock also features a UL 180 minute fire rating.
Specifications:
Backset: 2-1/2″ or 2-3/4″
Height: 19″
Width: 2-3/16″
Projection: 3-1/8″
Door Thickness: 1-3/4″ to 2-5/8″
Additional Emtek Links
View the Manufacturer Warranty
Browse all Emtek Products
Emtek Sandcast Rectangular Collection
Warranty and Product Information
| Approved for Commercial Use | No |
| Collection | Sandcast Bronze |
| Series | Sandcast Rectangular |
| Certifications | UL |
Dimensions and Measurements
| Height | 19 in. |
| Width | 2.8125 in. |
| Backset | 2-1/2″, 2-3/4″ |
| Door Thickness | 1-3/4″, 1-7/8″, 2″, 2-1/2″, 2-1/4″, 2-1/8″, 2-3/8″, 2-5/8″ |
| Projection | 3.125 in. |
| Grip Center to Center | 8.75 in. |
Characteristics and Features
| Material | Bronze |
| Thermostat | Traditional |
| Handle Style | Grip |
| Function | Keyed Entry |
| Keyway | C |
| Handshower | Left, Left Hand Reverse, Right, Right Hand Reverse |
| Handle Material | Metal |
| Cylinder Type | Single Cylinder |
| Color | Deep Burgundy, Flat Black, Medium Bronze, Silver Patina, Tumbled White Bronze |
| Color Tone | Blacks, Bronze Tones, Reds, Silver Tones |
