Latch / Deadbolt Entrance Mortise Strike
Thickness:
0.093″ (2.3mm), brass material
Screws:
Furnished with 12 combination wood / machine screws. finished to match.
Template:
Designed to fit metal / wood frames prepared in accordance to ANSI A115.1 / A115.11.
Features:
Furnished flat with rounded lip edges for universal use with left and Left handed locks
Curved Lip:
Available with a curved lip. Supplied standard with all locks incorporating a solid-type latch bolt.
Size:

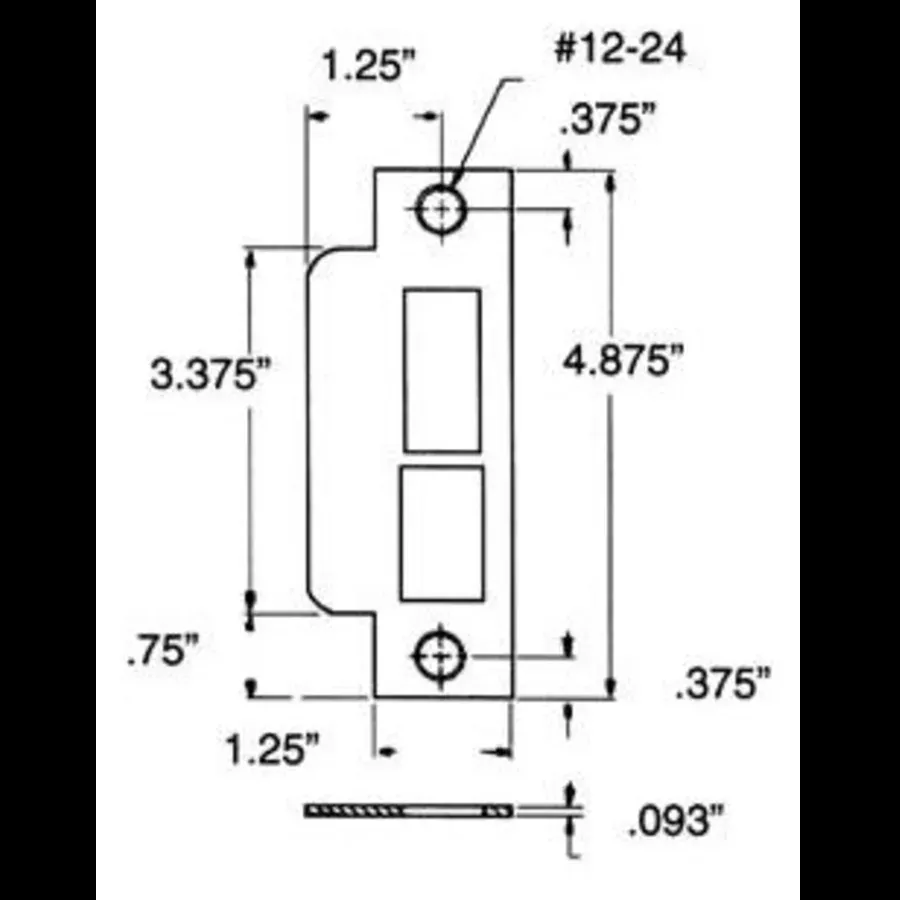

Base: 1.25″ x 4.875″ (32 x 124mm) x 1.25″ (32mm) Lip to Center
Latch and deadbolt function with 2-3/4″ backset latch
Supplied standard with all locks
Anti -friction latch bolt
For use with locks incorporating a .625″ (16mm) wide latch bolt (6000 Series).
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Mortise Lock Collection
Warranty and Product Information
| Approved for Commercial Use | No |
| Collection | Estate |
| Series | Mortise Lock |
| Product Variation | Mortise Strike Plate, T Strike Plate |
Dimensions and Measurements
| Height | 4.875 in. |
| Width | 1.25 in. |
| Backset | 2-3/4″ |
| Lip Length | 3.375 in. |
| Corners | Square Corner |
| Latchbolt Width | .625 in. |
| Lip to Center | 1.25 in. |
Characteristics and Features
| Material | Brass |
| Handshower | Left |
| Sconce Type | Wood/Machine |
Included Components
| Installation Hardware Included | Yes |
| Color | Aged Brass, Antique Nickel, Lacquered Vintage Brass, Lifetime Graphite Nickel, Lifetime Polished Brass, Lifetime Polished Nickel, Lifetime PVD Satin Brass, Lifetime Satin Nickel, Matte Antique Nickel, Non-Lacquered Brass, Oil Rubbed Bronze, Polished Chrome, Satin Black, Satin Brass, Satin Brass and Black, Satin Brass and Brown, Satin Chrome, Satin Nickel, Venetian Bronze, Vintage Brass |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
