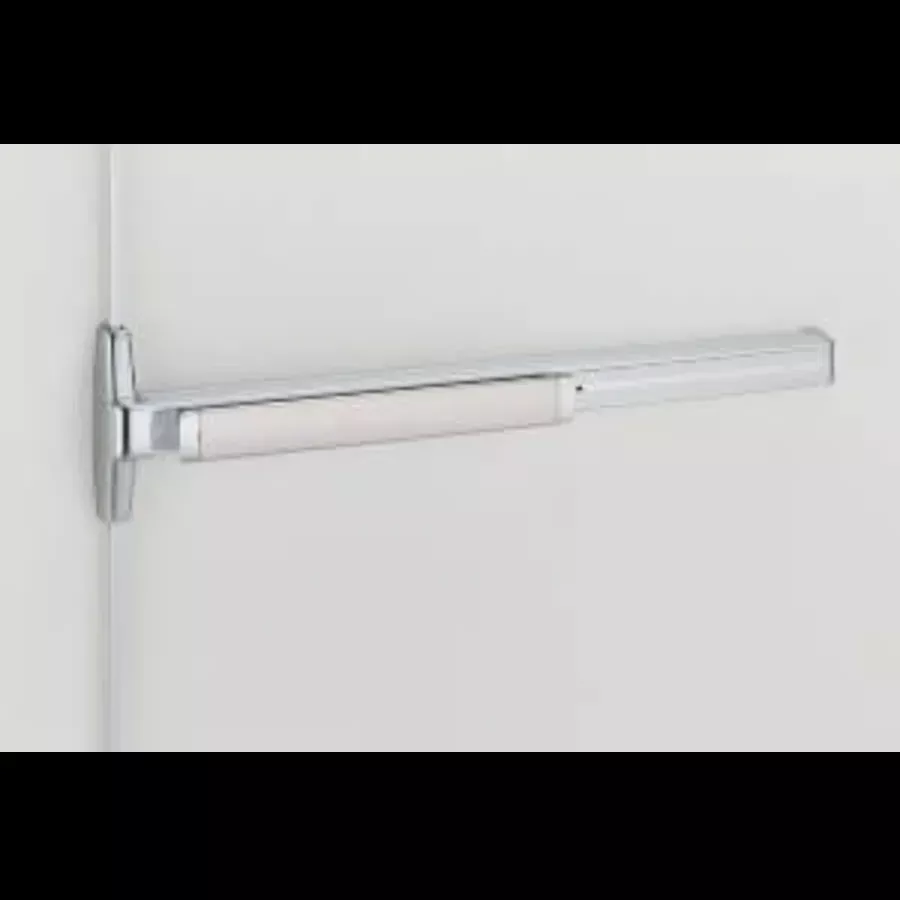

Concealed Vertical Rod Exit Device from the 33 Series
Add both security and convenience to your workplace, school or other facility with Von Duprin’s top of the line exit devices. Exit devices are a critical part of the Fire and Life Safety egress system and will provide safe and reliable service when properly applied and maintained. All 33 series devices include a fluid dampener that decelerates the pushpad on its return stroke and eliminates most noise associated with exit device operations. 3347AEO works with all types of single and double doors and features a grooved case.
Over the years, Von Duprin has been an innovator in many new concepts to the industry. Currently, Von Duprin manufactures the widest range of exit devices and outside trim operations, all designed to meet the needs of architects and building owners.
For single and double doors
UL listed for Panic Exit Hardware
ANSI A156.3 – 2001 Grade 1
Fits door stiles as narrow as 1-3/4″ (44mm)
One piece center case cover
Hex key dogging
Comes with strike set
Additional Von Duprin Links
Browse all Von Duprin Products
Von Duprin 3347 Collection
Warranty and Product Information
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Certifications | UL |
| BHMA Certification | Grade 1 |
| Fire Rated | No |
Dimensions and Measurements
| Height | 8.1875 in. |
| Width | 35.375, 45.33 in. |
| Depth | 3.1875 in. |
| Door Thickness | 1-3/4″ |
Characteristics and Features
| Handshower | Left, Reversible, Right |
| Panic Proof | Yes |
| Exit Device Type | Vertical Rod Device |
| Exit Trim Function | Exit Only |
| Color | Anodized Duranodic |
| Color Tone | Neutrals |
