Privacy Function: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.

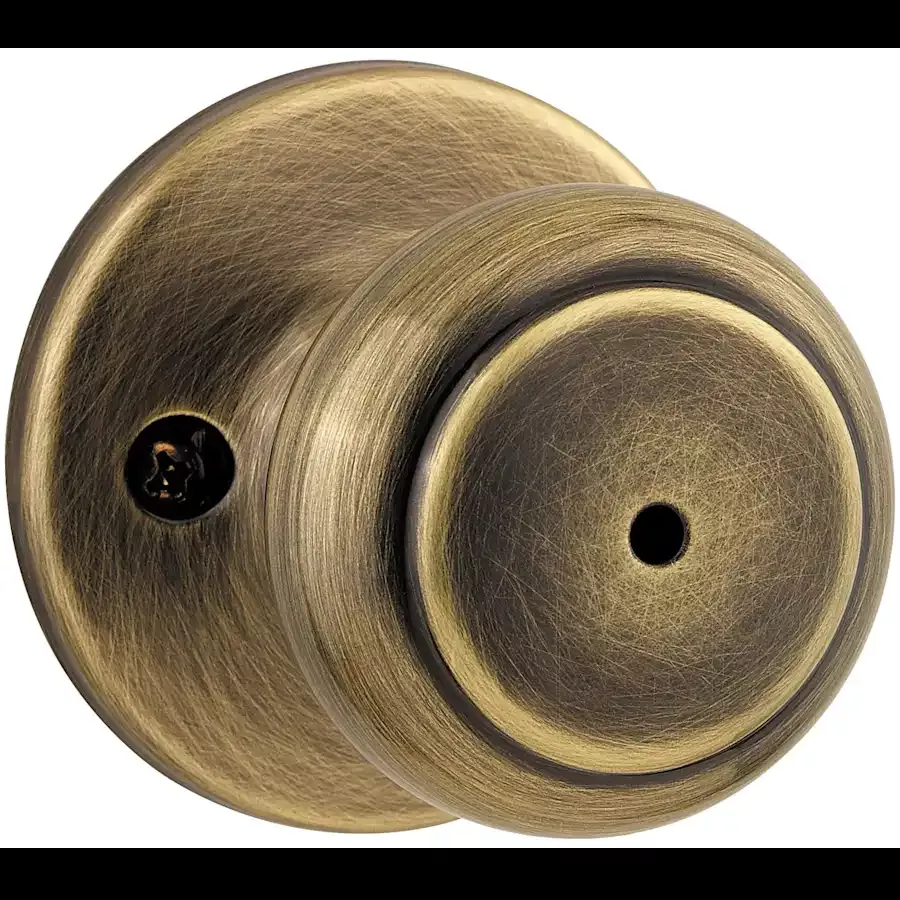

The Cove Collection is a Colonial styled knob that makes a simple yet elegant statement. It’s traditional design create a timeless look for your home.
Features
Exceeds criteria for BHMA Grade 3 security certification
Designed for both left and right handed doors
Installs in standard prep doors with door thickness of 1-3/8 to 1-3/4 inches
Includes a round corner latch plate
Covered by a limited lifetime warranty
Exposed Exterior Screws
Does not meet guidelines set forth by the American’s with Disabilities Act (ADA)
Specifications
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Knob Diameter: 2-3/16″
Rosette Diameter: 2-5/8″
Projection: 2-1/2″
Latch Faceplate: Round Corner
Material: Zinc
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset Cove Collection
Warranty and Product Information
| Approved for Commercial Use | No |
| Collection | Cove |
| Series | Kwikset Series |
| Manufacturer Warranty | Limited Lifetime |
| ANSI Certification | A156.2 |
| Certifications | ANSI |
| BHMA Certification | Grade 3 |
Characteristics and Features
| Material | Zinc |
| Thermostat | Traditional |
| Function | Privacy |
| Latch Faceplate | Round Corner |
| Rosette Shape | Round |
| Handshower | Left, Reversible, Right |
| Handle Material | Metal |
| Knob Shape | Round |
| Locking Mechanism | Thumbturn |
| Concealed Screws | No |
Dimensions and Measurements
| Backset | 2-3/4″, 2-3/8″, Adjustable 2-3/8″ or 2-3/4″ |
| Door Thickness | 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″ |
| Cross Bore | 2-1/8″ |
| Handle Projection | 2.5 in. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
| Handle Width | 2.1875 in. |
| Handle Height | 2.1875 in. |
| Color | Antique Brass, Matte Black, Polished Brass, Polished Chrome, Satin Chrome, Satin Nickel, Venetian Bronze |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
