Ideal for relining chimneys that have deteriorated lining, oversized lining, or for lining chimneys with no existing lining, Saf-T Liner System adds years to the life of a chimney. The product%27s resistance-welded, 24-gauge stainless steel fabrication meets code requirements and provides optimum safety. As a substitute for 5/8″ fireclay liner, Saf-T Liner cannot be beat.
Material Specifications:
Saf-T Liner systems consist of a Stainless Steel Liner Section (fabricated using either 304L or 316L stainless steel) insulated with Saf-T Wrap chimney insulation.
Misc:
Temperature Rating: 1000°
Supported Fuels: Saf-T Liner is suited for use with solid fuel and older oil- or gas-fired equipment that does not produce condensation in the vent.
Warranty: Lifetime Warranty
UL Tested and Listed to UL 1777
Additional Heat-Fab Links
View the Manufacturer Warranty
Browse all Heat-Fab Products
Heat-Fab Saf-T Liner Collection
Warranty and Product Information
| Approved for Commercial Use | No |
Characteristics and Features
| Material | Steel |

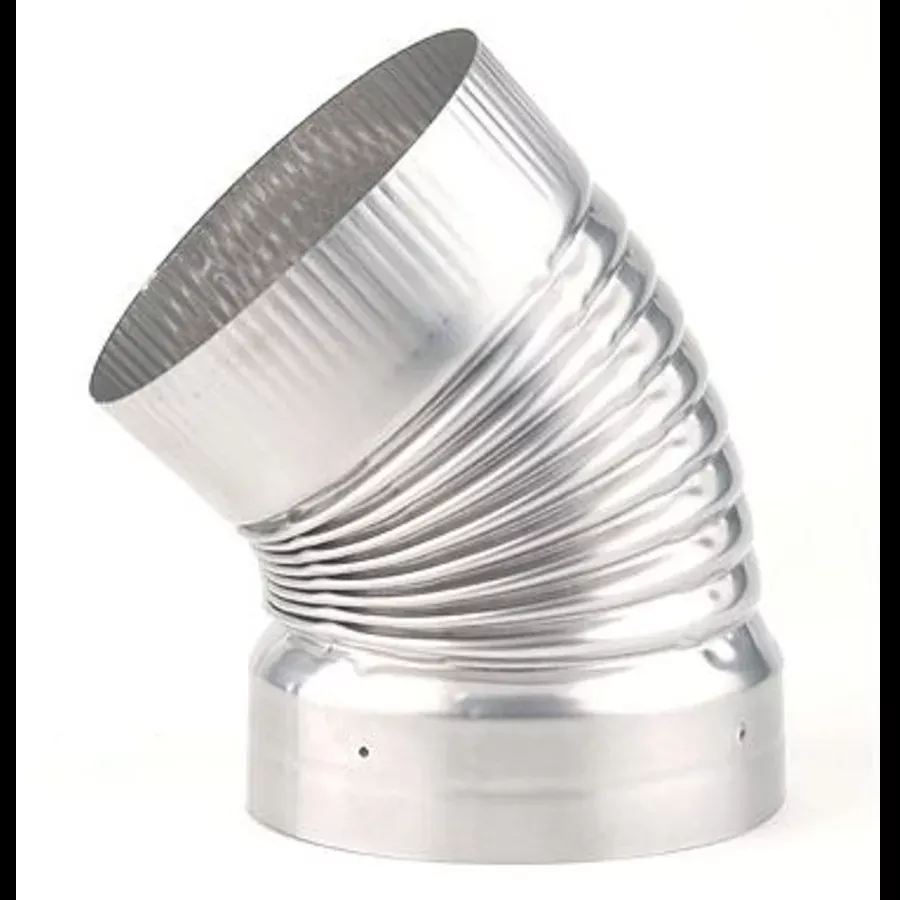

| Configuration | Elbow |
| Pipe Class | Rigid Liner |
Dimensions and Measurements
| Pipe Inside Diameter | 7 in. |
| Elbow by Angle | 45 (degree) |
Electrical and Operational Information
| Fuel Type | Coal, Oil, Wood |
| Color | Stainless Steel 304 |
| Color Tone | Stainless Steel |
