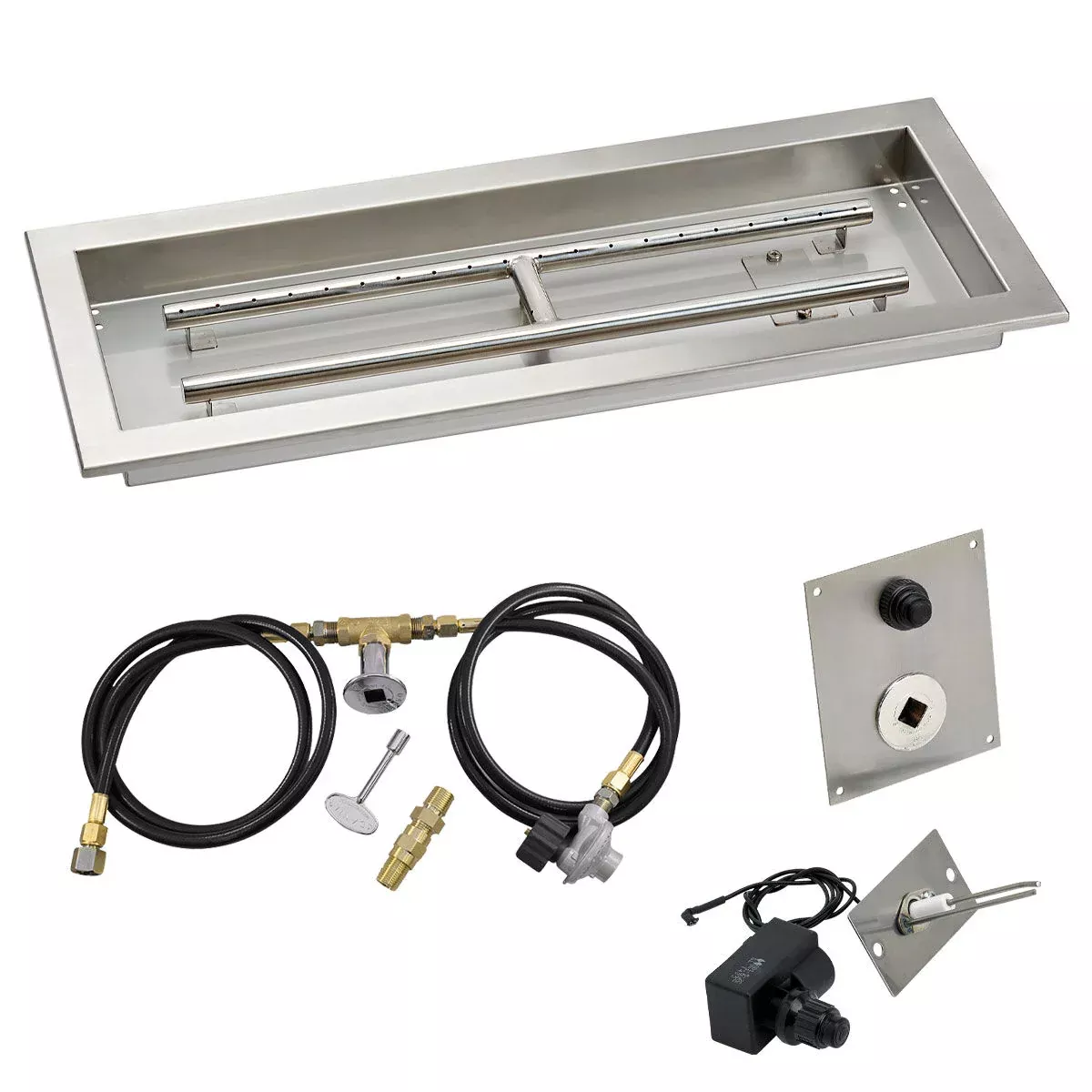

American Fire Products 24″ x 8″ Rectangular Drop-In Fire Pit Pan with Spark Ignition Kit – Propane Bundle is a complete outdoor fire pit solution designed for reliable ignition, long-lasting durability, and beautiful flame presentation. This bundle includes a premium stainless steel rectangular drop-in burner pan with built-in H-burner, push-button spark ignition kit, tempered glass flame guard, and stainless steel burner cover.
The drop-in burner pan features a raised flange for simple installation and a false-bottom design that reduces the amount of fire glass needed while maintaining a full, luxurious appearance. The built-in H-burner delivers an even flame pattern, while the battery-powered push-button spark ignition system offers quick, dependable lighting without electricity.
Designed for outdoor vented propane fire features, this complete bundle includes the essential propane connection components for a clean, professional installation and lasting outdoor performance.
Features
- Complete propane fire pit bundle includes burner pan, spark ignition kit, flame guard, and burner cover
- Battery-powered push-button spark ignition provides fast and reliable manual ignition
- Made from high-quality stainless steel for excellent durability and corrosion resistance
- Built-in H-burner delivers a consistent and attractive flame pattern
- Drop-in design with flange lip allows easy installation into custom fire pits
- Creates a false bottom to reduce fire glass requirements
- Includes drilled weep holes to help prevent water accumulation
- Drilled burner holes reduce whistling and improve burner performance
- Includes chrome key valve, propane regulator, air mixer, and gas hoses
- Optional push-button ignition mounting plate available for a clean installation
- Tempered glass flame guard improves safety and enhances flame visibility
- Stainless steel burner cover protects the fire pit when not in use
- Supports up to 20 lbs of fire glass (not included)
- Designed for outdoor vented propane fire features
Product Specifications
- Brand: American Fire Products
- Material: Hand-crafted High-Quality Stainless Steel
- Color: Stainless Steel
- Style: Contemporary
- Pan Size: 24″ L x 8″ W
- Depth: 2″
- Flange Size: 1 1/4″
- Fuel Type: Propane
- Burner Type: Built-in H-Burner
- Fire Glass Capacity: 20 lbs (not included)
- Maximum Heat Output: 120,000 BTU/hour
- Ignition Type: Push-Button Spark Ignition
- Burner Hole Design: Drilled holes to prevent whistling
- Application: Outdoor vented propane fire features
- Product Weight: 12 lbs
- Spark Ignition Kit Includes
- Push-Button Spark Ignitor (Battery Included)
- Chrome Key Valve with Key
- 4 ft Gas Hose
- 5 ft Gas Hose
- Portable Propane Tank Regulator
- Propane Air Mixer
- Optional Push-Button Ignitor Mounting Plate
- Flame Guard Specifications
- Material: Clear tempered glass panels
- Brackets: Polished aluminum fire-resistant brackets
- Assembled Size: 29.5″ x 13.5″ x 6″
- Burner Cover Specifications
- Material: 304 Stainless Steel
- Finish: Smooth brushed finish
- Handle: Heavy-duty solid chrome handle
- Actual Size: 27″ x 11″ x 1.5″
- Bundle Includes
- (1) 24″ x 8″ Rectangular Drop-In Pan with Spark Ignition Kit – Propane
- (1) Rectangular Flame Guard (29.5″ x 13.5″ x 6″)
- (1) Rectangular Stainless Steel Burner Cover (27″ x 11″ x 1.5″)
Downloads
- American Fire Products Cutout Size & Recommended Fire Ring [Download]
